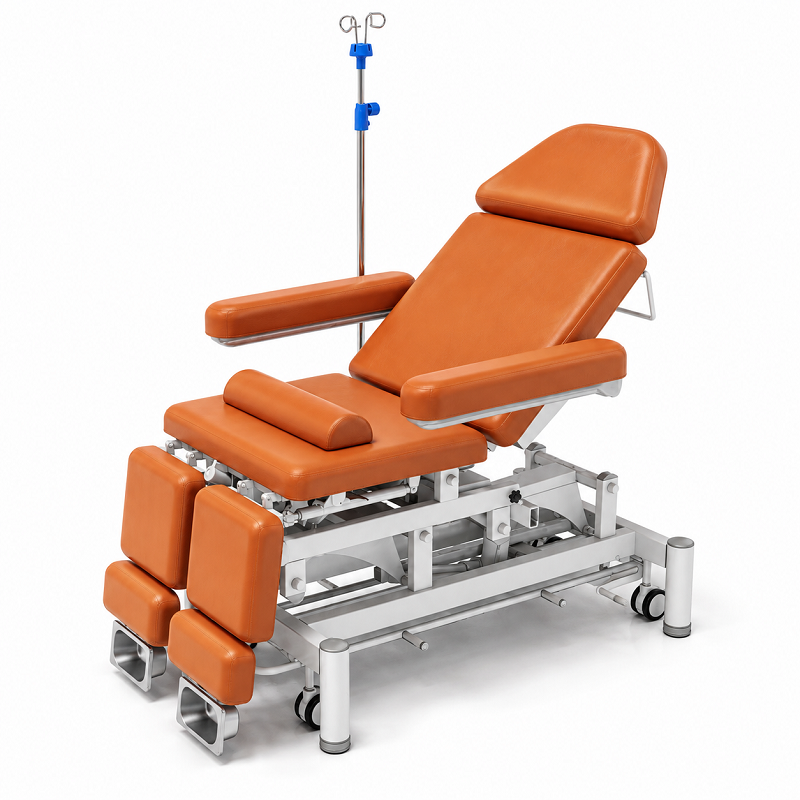

KFM-T108 Electric Podiatry Chair with Split Leg Supports

KFM-T108 Electric Podiatry Chair with Split Leg Supports

KFM-T108 Electric Podiatry Chair with Split Leg Supports

Overall Dimensions: 1920 × 580/850 × 610–910 mm; dimensional tolerance: ±50 mm
Height Adjustment: 610–910 mm / 61–91 cm
Backrest Adjustment: 0–80° ±3°
Overall Backward Tilt: 0–10° ±3°
Leg Section Adjustment: 0–85° downward, ±3°
Headrest Extension: 0–150 mm
Lower-Leg Support Extension: 0–150 mm
IV Pole Extension Adjustment: 0–220 mm
Maximum Patient Weight: 135 kg
Rated Load: ≤200 kg
Specified Service Life: 5 years

  • Details

The KFM-T108 electric podiatry chair features split leg supports, 61–91 cm height adjustment and an adjustable backrest for adult foot care and lower-limb examinations. Extendable head and lower-leg supports allow further positioning adjustments. High-density resilient foam padding and a powder-coated carbon steel frame provide a supportive examination surface.



  • Split Leg Supports:

  • Separate supports provide access to each foot during examinations and foot care.

  •

  • Adjustable Positioning:

  • Height, backrest, backward tilt and leg section adjustments accommodate different examination positions.

  •

  • Extendable Supports:

  • The headrest and lower-leg supports each offer up to 150 mm of extension.

  •

  • Padded Construction:

  • High-density resilient foam padding is supported by a powder-coated carbon steel frame.





What is the height adjustment range of the KFM-T108?

The chair height adjusts from 610 to 910 mm, equivalent to 61–91 cm.



How can the leg supports be adjusted?

The chair features split leg supports. The specified leg section adjustment is 0–85° downward, with a lower-leg support extension range of 0–150 mm.



What is the maximum patient weight?

The maximum patient weight is 135 kg. The separately specified rated load of up to 200 kg should not be used as the patient weight limit.
